How to choose insulating glass equipment? What materials are needed to make insulating glass?

With the continuous changes in the global economy, building energy conservation is now receiving more and more attention, and many developers are preparing to replace their windows with insulating glass windows with good heat and sound insulation effects. Insulated glass has many properties better than ordinary double-layer glass, so it is recognized and welcomed by countries around the world. Not only that, the use of insulating glass can also effectively reduce the weight of the building, making it a more practical new building material. Here we will introduce to friends who are preparing to start an insulating glass factory how to choose insulating glass equipment and what materials are needed to make insulating glass.

1. How to choose insulating glass equipment

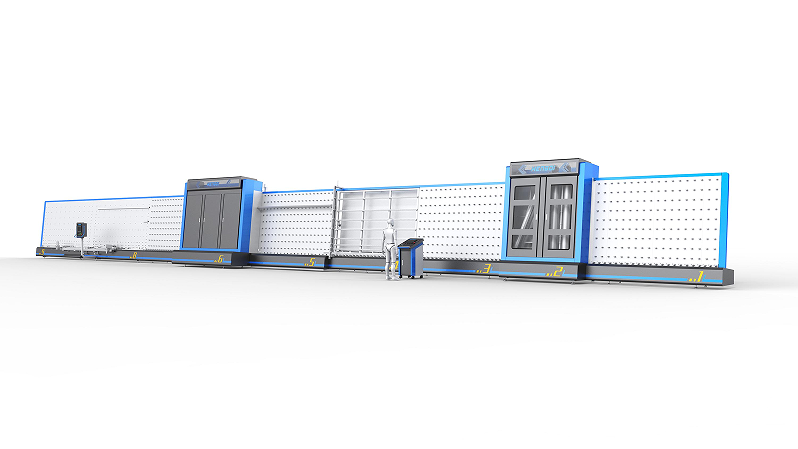

First, consider the production scale: If the business volume is small and you want to save costs, choose a horizontal glass cleaning machine or a 3-stage vertical glass cleaning machine or a handheld glue machine. These types of equipment are simple to operate and low in price. , but the daily production volume is limited to about 300 square meters; if the business volume is large, choose to use an insulating glass production line. The conventional sizes are: 2025/2030/2530/2535/2540/2840/3060, etc., a full set of insulating glass equipment, all Models can be selected and customized according to the size of the glass you process.

Horizontal equipment requires 4-6 people to operate, and a fully automatic insulating glass production line generally requires 3-5 people.

2. What materials are needed to make insulating glass?

Materials required: glass, aluminum frame, aluminum frame interface, desiccant, butyl glue, sealant.

Insulating glass is a new building material that has good heat insulation, sound insulation, beautiful appearance and practicality, and can reduce the weight of the building. It uses two (or three) pieces of glass and uses a high-density, high-airtight composite adhesive. , the glass sheet is bonded to an aluminum alloy frame containing a desiccant to make high-efficiency, sound-insulating and heat-insulating glass.

The multiple properties of insulating glass are superior to ordinary double-layer glass, so it has been recognized by countries all over the world. Insulating glass equipment can effectively support, evenly space two or more pieces of glass, and bond and seal the periphery to make the glass layers Glass products with a dry gas space formed between them. Its main materials are glass, aluminum spacers, angle bolts, butyl rubber, polysulfide rubber, and desiccant
