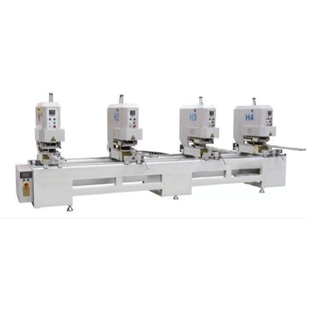

Four-Position Seamless Welding Machine for Plastic Doors and Windows

Equipment Features:

1. Specifically designed for welding colored profiles, with the ability to clean the weld bead in one pass after welding.

2. Strict control of welding gap size, resulting in a smooth, aesthetically pleasing, and high-end appearance of the weld seam.

3. The entire set of tools is made of alloy materials, undergoes precision processing through quenching, achieves standardization, and supports tool interchangeability.

4. The machine body is welded with a high-rigidity frame, providing strong load-bearing capacity and resistance to deformation.

5. Equipped with an automatic air blowing device to automatically blow away the sheared welding beads.

6. Pneumatic clamping for the movement of machine heads ensures convenient operation, stability, and high work efficiency.

7. The lower positioning plate uses square track sliding for high positioning accuracy and long-term stability.

8. The up-and-down movement of the heating plate uses linear slide rail motion mechanics to ensure smooth precision in vertical movement.

9. The machine's clamp operation design uses high-precision square guide rails to ensure the straightness and smoothness of the welding.

10. The machine is equipped with a unique head locking mechanism that provides strong locking effectiveness without damage over long-term use.

11. Each machine head has the ability to weld at any angle, meeting the requirements for welding arched profiles and other irregular doors and windows.

12. The machine is equipped with a color touchscreen, allowing for the adjustment of PLC parameters and easy data adjustment for different profiles.

Main Parameters:
