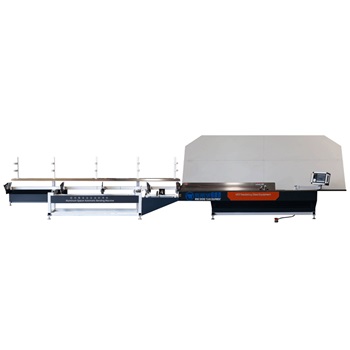

Fully Automatic Special-Shaped Aluminum Spacer Bending Machine
Adopt CNC servo motor feeding system and CNC bending angle control system
Four storage tanks can store 4 different specifications of aluminum bars respectively
The machine is equipped with a label printing device to print processing information online in real time
Equipment Features:
1. Adopts the world-leading CNC control system with superior performance, a pioneering effort in China.
2. Simple and quick parameter input, easy operation.
3. Servo control system for feeding and bending.
4. Can simulate actual bending graphics with a lifelike frame.
5. Capable of bending irregular shapes such as rectangles, circles, squares, arches, trapezoids, pentagons, triangles, etc.
6. Four material storage slots for storing aluminum bars of different specifications and lengths.
7. Can simultaneously set data for 800 different specifications of aluminum frame sizes.
8. Automatically avoids the connection arcs between aluminum bars during bending and cutting.
Main Parameters:
Power | 380V 50HZ 2.5KW |
Maximum Processing Size | 2000*2000mm |
Minimum Processing Size | 250*250mm |
Aluminum Bar Width | 5.5-24mm |
Aluminum Bar Conveyor Speed | 120m/min |
Air Supply | 流量0.6m³/min气压≥0.8mpa |
Dimensions | 1050*2100*2200mm |
