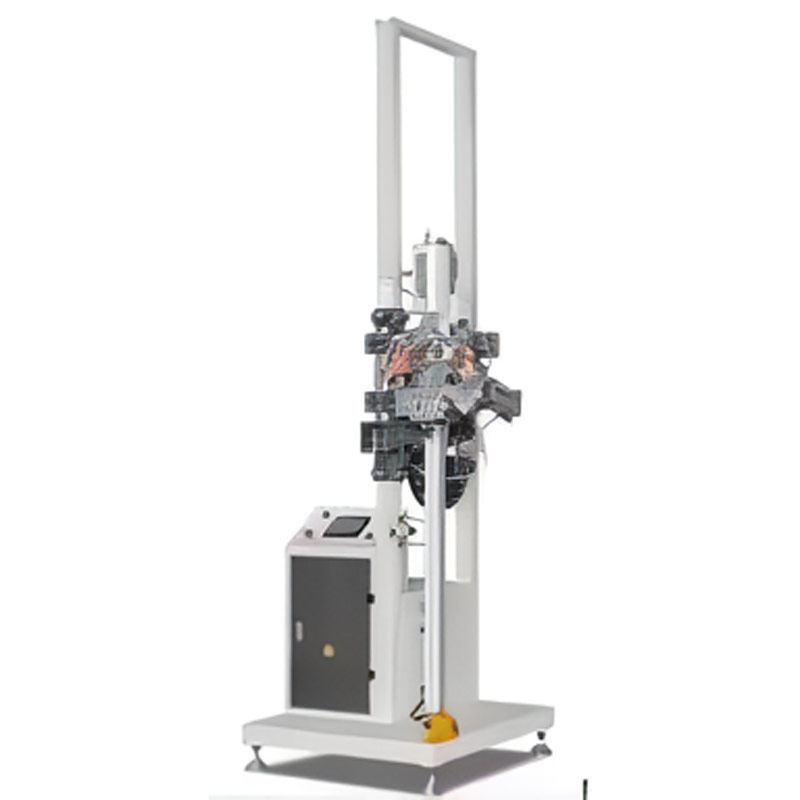

Fully automatic molecular sieve filling machine

Main performance characteristics

1. Motion controller system, man-machine interface, easy operation.

2. Filling under closed conditions solves the problem of desiccant water absorption failure and improves efficiency and life of insulating glass.

3. The core controls are imported brands.

4. Aluminum strip back middle drilling, filling, automatic sealing.

5 Can fill automatic bending aluminum frame and ordinary straight insert Angle aluminum frame.

6. The filling height can be adjusted according to the size of the aluminum frame.

7. Unique advanced feeding device, automatic feeding.

8. This model can be customized arc Angle aluminum frame cans (such as high-speed iron glass)

Main technical parameters

Power supply: 220V/50Hz

Power: 1.0KW

Air source: 0.5-0.8mpa

Molecular sieve flow rate: about 24g/s

Filling speed: 8-12s/ piece (1m*1m 9a)

The minimum size of filling aluminum frame: 250×250mm

Maximum size of filling aluminum frame: 2000×2000mm

Minimum aluminum bar: 6.5*5.5mm

Maximum aluminum bar: 6.5*34.5mm

Molecular sieve diameter: 0.5-0.8mm

Dimensions: 1100×1000×3600mm
