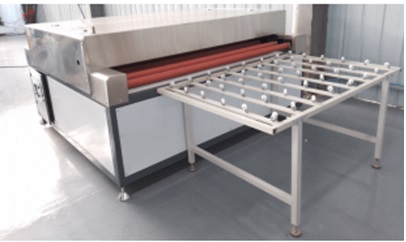

Horizontal Hot Press for Insulating Glass
1. This machine is specialized equipment for producing composite spacer bar insulating glass.
2. It can complete the heating roller press process for insulating glass.
3. It features an efficient and energy-saving design, with automatic temperature control, making it an economical choice.
Equipment Features:
1. This machine is a dedicated equipment for producing composite spacer-type insulating glass and can complete the heating and roller pressing process of insulating glass.
2. The lifting mechanism adopts a unidirectional integral adjustment, with unified and stable lifting, and independent rotation.
3. Efficient and energy-saving design, automatic control of working temperature, making it an economical device.
4. Uses 18 quartz tube heaters for high thermal efficiency.
5. Two pairs of rollers with increasing compression strength, resulting in smaller thickness tolerances.
6. Adopts a gradient pressing method from input to output direction for better pressing effects.
7. Equipped with instant heating function.
8. Can achieve manual adjustment with stepless control.
Main Parameters:
Model | 1500A |
Power | 380V 50HZ 20KW |
Maximum Glass Size | 1500*2000mm |
Minimum Glass Size | 420*420mm |
Processed Glass Thickness | 3-30mm |
Operating Speed | 0.5-12m/min |
Overall Dimensions | 2500*1900*1200mm |
