Fully Automatic Butyl Rubber Coating Machine

Equipment Features:

1. Utilizes PLC control system with well-known domestic and international electrical components, ensuring stable and reliable performance and easy operation.

2. High level of automation allows the equipment to automatically complete the gluing process according to requirements without manual intervention, ensuring stability.

3. Designed with advanced fully enclosed technology, exhibiting excellent high-temperature resistance and impact resistance for a long lifespan.

4. After extensive testing, the equipment has a lifespan of 15-20 years or more, offering high cost-effectiveness. It provides more stable and reliable product quality compared to traditional manual processes, and at a relatively lower cost.

5. Simple operation, requiring minimal specialized knowledge.

6. Features linear gluing and automatic temperature control functions.

7. Unique machine structure for stable and durable operation.

8. Equipped with automatic functions for preheating and delayed shutdown.

9. One-key operation, capable of automatically recognizing the width of aluminum bars and ensuring even gluing.

10. Machine includes a no-glue alarm function for early warning during use.

11. The interval frame is manually placed on the conveyor belt. When it passes through the sensor, the transfer roller and gluing valve automatically operate according to the set program.

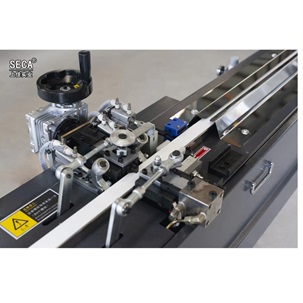

12. The swinging cylinder moves, the pressure roller presses down, and the aluminum interval frame advances. When the interval frame reaches the gluing head, gluing is initiated, evenly coating the aluminum interval frame with glue.

13. When the other side of the interval frame is about to reach the pressure roller, the pressure roller lifts. When it moves away from the gluing head, the glue valve automatically closes, stopping the gluing. The entire process is controlled by a PC and can be adjusted through the human-machine interface by touch.

14. In terms of design, selection of components, and gluing effects, the equipment is at an advanced level domestically.

15. Adopts a PC control system to automatically complete positioning, conveying, and gluing.

16. Variable frequency speed control for the conveyor ensures smooth operation.

17. Automatically adjusts the positioning mechanism without pressure leakage, ensuring uniform gluing between the gluing head and both sides of the interval frame.

Main Parameters:
