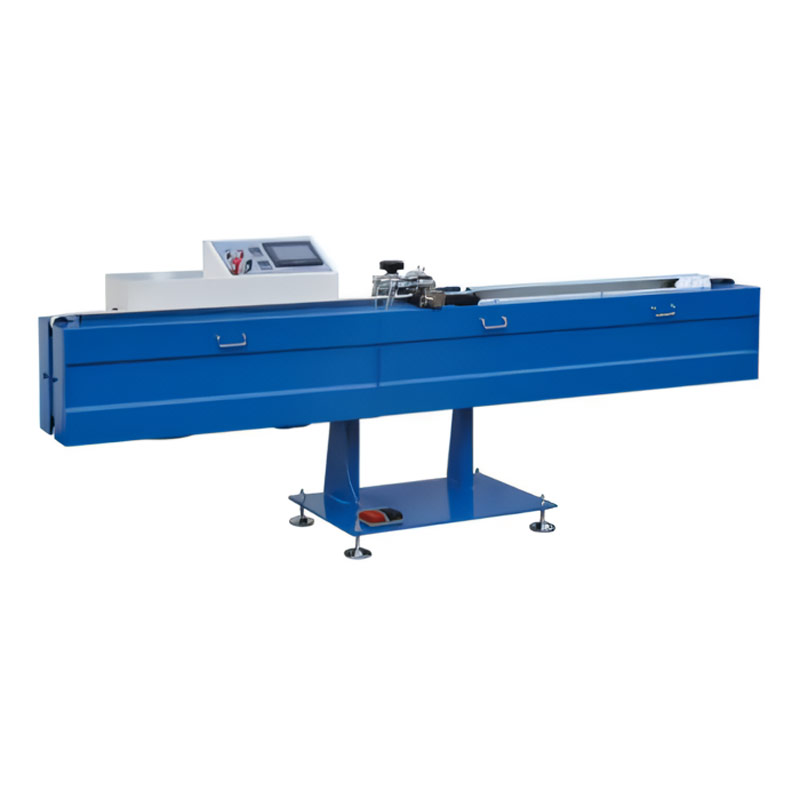

Automatic Butyl Adhesive Coating Machine

Performance characteristics;

Adopt advanced imported original pneumatic pump system, make the equipment pressure more stable, and energy saving

Use touch screen organic interface control system, the operation is more clear and simple.

The use of frequency conversion speed control conveying system, is the speed of 1-5 speed from 15-35 meters/min optional.

Takes the lead in adopting advanced automatic gluing system, which can be adjusted within 6-18.5mm.

Rubber cylinder adopts rotary structure, 0-90 degrees of free rotation, more convenient glue release and maintenance

Adopt pre-heating system, arbitrarily set pre-heating time, improve efficiency.

Glue amount automatic alarm system, accurately display the amount of glue used.

Large size glue cylinder, one time glue up to 14kg.

Technical parameters:

★ Power supply: 220V/500HZ

★ Total power: 2.2KW

★ Extrusion pressure: 15-20Mpa

★ Extrusion temperature: 110-140℃

★ Conveying speed: 15-35m/min

★ Pneumatic pressure: 0.5-0.8Mpa

★ Adjustable range of rubber head: automatic 6-18.5mm, manual 6-27mm

★ Rubber cylinder diameter: 200mm

★ Air consumption: 60L/min

★ Dimensions: 3000*620*1102mm
