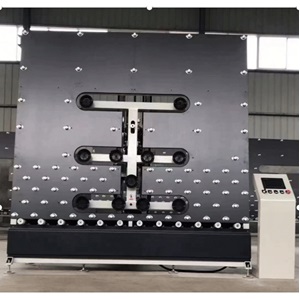

Fully Automatic Glass Feeder/Unloader

Equipment features:

1. Uses domestically advanced servo motors for flipping, capable of stopping at any angle. The stable running speed can meet the loading operation of 3-10mm insulating glass.

2. The loading angle in the vertical direction is adjustable from 0-15 degrees, meeting the loading requirements for glass frames at various angles.

3. Loading depth: Can meet loading depths within 700mm, with no need for any auxiliary support. It can directly load from the glass rack.

4. Adopts international brand Autonics glass induction photoelectricity to effectively prevent safety accidents caused by induction failure.

5. The suction cups use an advanced double-layer suction structure (inner and outer layers), ensuring more secure adhesion during suction operations and eliminating defects caused by outer layer scratches and air leakage during suction.

6. Each set of suction cups can be intelligently selected to turn on or off through the display screen. It allows free selection of the number of working suction cups for easy loading of glass of various sizes.

7. The equipment has a unique lifting program device to effectively prevent glass damage caused by associated lifting.

8. The equipment has both automatic and manual modes for convenient and intuitive operation.

9. Features a color LCD touchscreen display interface with Chinese display module for easy and quick operation.

10. When the glass rack is too close to the equipment, it stops extending forward to a certain position to avoid collision with the conveyor wheel during descent.

11. The equipment is equipped with an emergency stop switch for controlling equipment stoppage in case of abnormalities.
