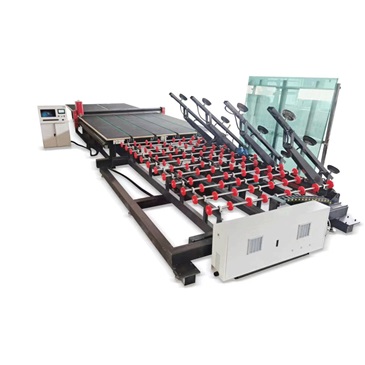

3826 Glass Cutting Line
1. It offers fully automatic cutting and processing for straight-line or irregular shapes based on user requirements.
2. Cutting pressure is entirely computer-controlled, resulting in high-quality cutting.
3. The work surface is equipped with air flotation and adjustable height to meet specific needs, ensuring excellent performance, safety, and reliability.
Equipment features:
1. Fully automatic cutting and processing for straight or irregular shapes according to user requirements.
2. Cutting pressure is entirely computer-controlled, ensuring high cutting quality.
3. Axis drive employs imported servo motors for high repeatability in cutting origin positioning.
4. Equipped with comprehensive safety measures to ensure prolonged equipment operation.
5. The cutting head of the equipment can rotate 360 degrees, allowing for vertical and horizontal cutting, accurately cutting any straight lines and various irregular glass shapes.
6. Imported industrial felt is used for the felt pad, preventing static electricity and reducing glass scratching.
7. The guide rails use Silver or Yintai linear guides.
8. Controlled directly by a PC computer with a Microsoft Windows interface.
9. Motors use high-speed servo motors from Japan.
10. The working table features air flotation, adjustable height as needed, excellent performance, safety, and reliability.
Main parameters:
Power consumption | 380V 50HZ 6KW |
Compressed air | 0.6Mpa |
Vacuum pressure | -70-90Kpa |
Maximum suction depth | 700mm |
Maximum upper sheet load | 900kg |
Maximum upper sheet size | 3800*2600 |
Cutting speed | 0-30m/min |
Upper sheet position | Duplex |
