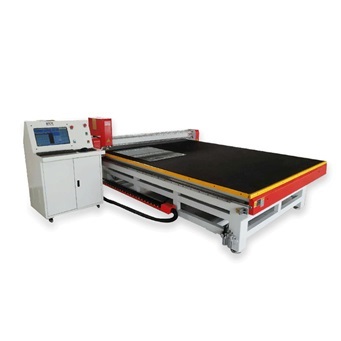

3826 Glass Cutting Stand-Alone Machine
1. The axis drive uses imported servo motors, providing high repeatability and precision in cutting origin point positioning.
2. It can be equipped with a double-sided dual-station or single-sided single-station loading table with gear transmission for safety and reliability.
3. It comes with a breaking table and features one-touch start capability.
Equipment Features:
1. The equipment frame is welded with high-quality steel and undergoes aging treatment, ensuring long-term use without deformation.
2. Japanese SMC proportional valve controls the cutting blade, and German cutting wheel is used.
3. Utilizes well-known domestic electrical components.
4. Features high-quality, high-density waterproof panels that are resistant to deformation.
5. Equipped with a servo motor.
6. The cutting blade on the left side can rotate 360 degrees, and it performs top-down cutting, accurately cutting any straight or irregular glass shapes.
7. The felt adopts imported industrial felt and is anti-static, reducing the risk of scratching the glass.
8. Suitable for cutting various types of glass used in home and industrial applications.
9. The table has a floating air-blowing function.
10. PLC point-difficult control for easy operation.
Main Parameters:
Power supply voltage | 380V 50HZ |
Working table surface | Hard PVC + felt (Surface flatness 0.5mm) |
Cutting precision | Straight cutting ≤ 0.15mm, Irregular cutting ≤ 0.25mm |
Cuttable glass thickness | 1.5-19mm |
Maximum processing size | 3660*2440mm |
Cutting speed | 0-160m/min |
Compressed air | 0.6Mpa |
Other parameters | Customization supported |
